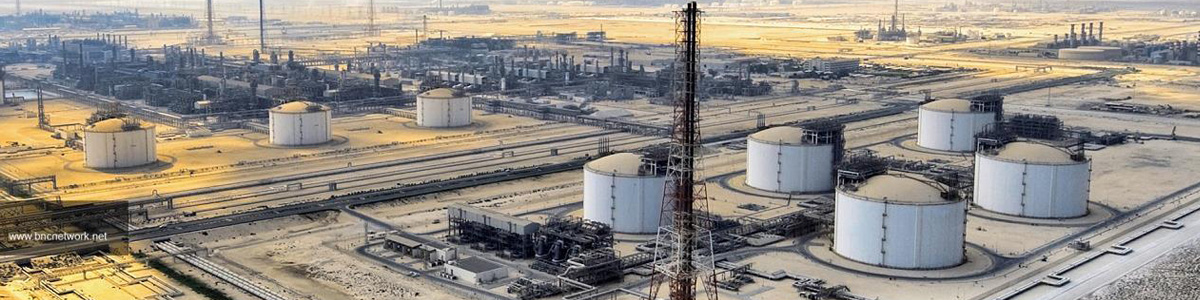

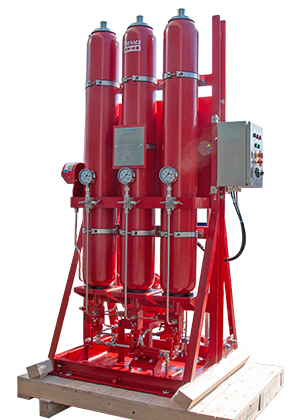

Qatar’s New LPG Bottling Facility A new liquefied petroleum gas (LPG) bottling plant is under construction in Ras Laffan. The contractor appointed for this state-of-the-art facility is focused on enhancing LPG supply resiliency in Qatar. As a sub-contractor Hatraco has been awarded an order for the delivery of 2x hydraulic start systems to provide backup start energy for Cummins CFP15 driven Fire water pumps.
As per NFPA-20 requirements for a secondary start system, the start system provides the minimum of 6 times of 15 seconds of start duration. By means of pre-set pressure values, the hydraulic start system is automatically recharged by means of an electric motor driven recharge pump. The recharging cycle is managed by pressure transmitters in combination with a local control panel.
TECHNICAL INFORMATION
| Project | : | LPG bottling, Ras Laffan |
| End user | : | Qatar energy |
| Location | : | Ras Laffan inductrial city, Qatar |
| EPCC | : | Roots Energy & Engineering Services / Black cat engineering |
| Start capacity | : | 3 x 50 Litres |
| Start requirements | : | 6 times, 15 seconds each |
| Recharge time | : | within 30 minutes |
| Engine | : | Cummins CFP 15 |
| Required engine firing speed | : | 110 - 120 RPM |
| Application | : | Cummins CFP 15 diesel engine driven fire water pump |
| Design code / Certification | : | Accumulator design according to ASME VIII Div 1, U stamped |
| Specialties | : | 1 start valve manifold for accumulator depletion |
| Local control panel |
