2 more Air Start Systems for FWP

Following the successful design and delivery of two air start systems for the North Field East Project, Hatraco has once again been selected to supply these systems for a follow-up development: the North Field South Project by QatarEnergy. The air start systems will again be used as the primary starting solution for Caterpillar® C18 diesel engine-driven fire water pump (FWP) sets.

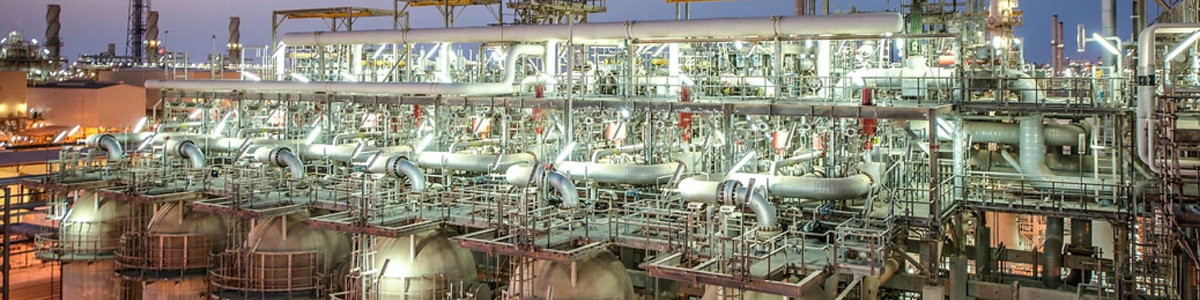

This project is being executed in collaboration with the Japanese company Chiyoda and Technip Energies, the same joint venture responsible for the North Field development. The North Field South Project is a key component in the continued expansion of the world’s largest Liquefied Natural Gas (LNG) infrastructure.




TECHNICAL INFORMATION
Project:North Field South
End user:Qatar energy
Location:Qatar
EPCC:Technip / Chiyoda
Start capacity:1x 1500 Litres
Start requirements :6 times 30 seconds each
Recharge time:within 60 minutes from 6,5-30 bar
Engine:Caterpiller C18
Required engine firing speed  :120 RPM
Application:Primairy starting system for diesel engine driven FWP sets

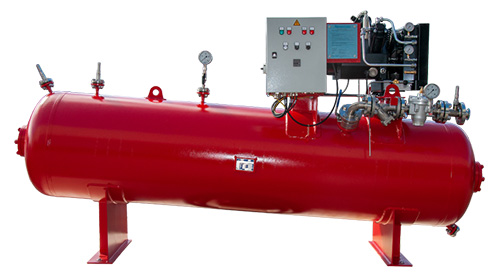

Design code / Certification   :ASME VIII Div 1, U-stamped horizontally 1500Liter air receiver
Specialties:Control panel for stand alone operation
